14.12.1. Video Dial Out Previous topic Parent topic Child topic Next topic

For the video dial out method, the UC clients type in a SIP URI string and are able to join video conferences from other companies (routed through internet).

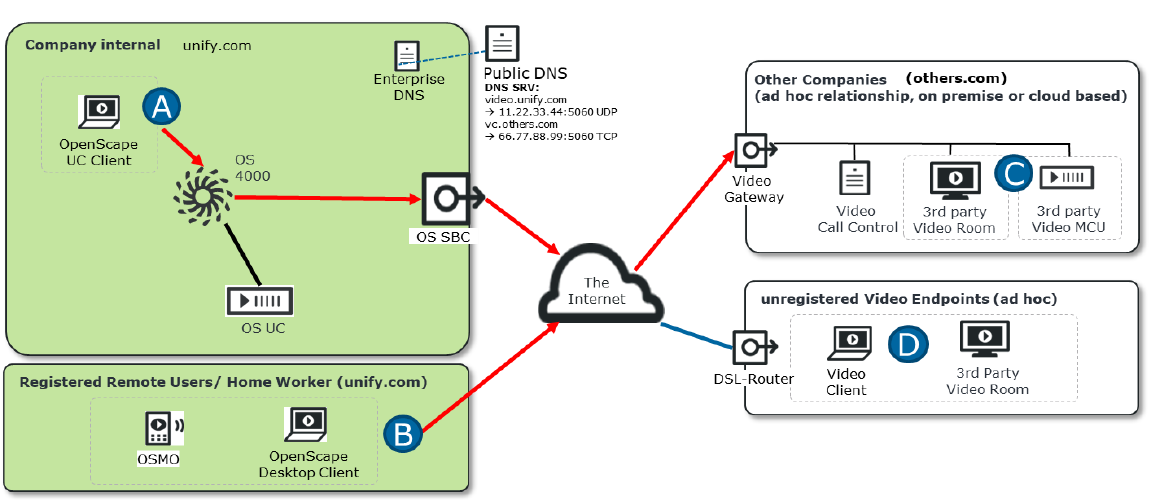

Figure 342. Video Dial Out


Table 81. D1 and D2 are connected

Product
Dial out scenario:
Task/ Responsability
OpenScape UC client
OpenScape UC
  • Type in SIP URI address
  • Forward to OpenScape 4000 (via CSTA) OpenScape 4000
OpenScape 4000
  • Analyze SIP URI
  • Route call to SBC (wildcard based or domain based defined in SBC)
OpenScape SBC
  • Resolve SIP URI to IP address
  • Send call to internet
