Configuration example

• Add virtual TMOM on Softgate:

  ADD-BCSU:MTYPE=PER,LTU=36,SLOT=2,PARTNO="Q2340-X";

• Add RAS type circuit on virtual TMOM board for the synchronized announcement:

  ADD-BUEND:TGRP=90,NAME="SYNCA",NO=6;
  ADD-COT: 91,ANOD&NTON;
  CHANGE-COT:91,COTADD,,INDEP,"91:SYNCA STA-STO";
  ADD-COP:91,SACK&LSUP,,;
  CHANGE-COP:91,COPADD,,,,INDEP,"91:SYNCA STA-STO";
  ADD-TSCSU:PEN=1-36-2-0,COTNO=91,DPLN=0,ITR=0,TGRP=90,CCT="CFW OUT",ALARMNO=0,SRCGRP=1,INS=Y,DEV=RAS,COPNO=91,SUPV=SUPV3,ACKT=SZACK2,ANNTYPE=1,CLASSMRK=EC&G711;


• Synchronized Announcement settings:

  ADD-SYNCA:TABTYPE=ANNTT,ANNTYPE=1,ANNAME="CFW
  OUT",ANSTATE=ON,ANREP=1,OPMODE=STASTO, DELAYTM=1;
  ADD-SYNCA:TABTYPE=ANNMITR,ANREASON=FWDOUT,ITR=0,ANNTYPE=1;
  ADD-SYNCA:TABTYPE=ANNTONE,ANREASON=FWDOUT,PRETONE=LCRET,BACKTONE=RNGBK;


• The system and the network (trunks) settings for the synchronized announcement:
  TIE trunk - internal:

  CHANGE-ZAND:TYPE=ALLDATA2,ANSES=YES;
  CHANGE-COT:COTNO=22,COTTYPE=COTADD,PAR=ABNA&ABPD&IBSY&WAAN;
  CHANGE-COT:COTNO=22,COTTYPE=COTDEL,PAR=KNDI&KNEX&KNTE&TRAI&KNOR;
  CHANGE-COSSU:TYPE=COS,COS=33,AVCE=ANSYN;


• CO trunk – external/exit
  New attribute FWDOUT was defined in LDAT for the outgoing route of the forwarded call:

  CHANGE-LDAT:LROUTE=1133,LSVC=ALL,LRTEL=1,LATTR=FWDOUT;

  +---------------------------------------------------------------------------+
  | LROUTE = 1133  LDPLN        NAME = CO S0                    SERVICE =  ALL
  | TYPE = LCR                                 DNNO OF ROUTE  = 1 -1  -999    |
  | SERVICE INFO =                                                            |
  +------+-----+-----+----+-----+----------+-----------+----------+------+----+
  |      |     |     |    |     | SCHEDULE |CARRIER    |          |      |    |
  |LRTEL | LVAL|TGRP | ODR|LAUTH| ABCDEFGH |       ZONE|    LATTR |LDSRT|COTIDX
  +------+-----+-----+----+-----+----------+-----------+----------+------+----+
  |     1|    1|  133|  12| 1   | ******** | 1    EMPTY|   FWDOUT |      |    |
  +---------------------------------------------------------------------------+

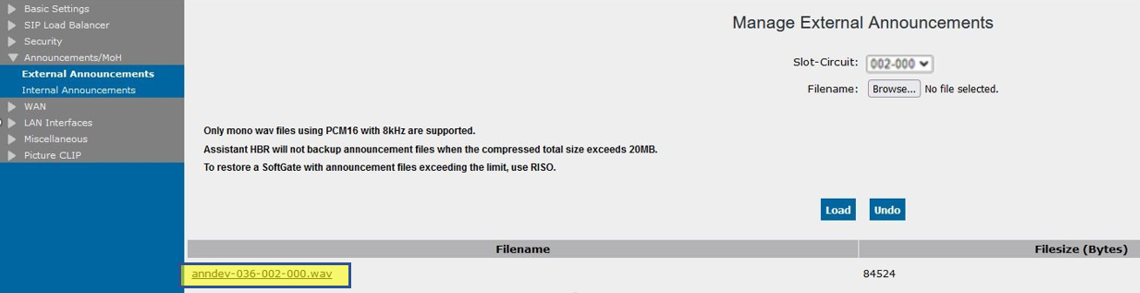

• In a browser open the WBM of the virtual NCUI of the Softgate. This is located on slot 6:

  LTG  1  LTU 36  SRCGRP 6    ALARMNO-LTU 0     SOFTGATE1000    488 PORTS USED
  -----+-----------+--------+---+-+-+---+-+------------+------------+---------+
       |           |        |   |S|H|AL-|N|            |            |         |
       | ASSIGNED  | MODULE |FCT|E|W|ARM|P| INSERTED   |    HW-     | MODULE  |
   PEN | MODULE    | TYPE   |ID |C|Y|NO |R| MODULE     |STATE INFO  | STATUS  |
  -----+-----------+--------+---+-+-+---+-+------------+------------+---------+
     1 | AVAILABLE                     0| | AVAILABLE  |            |         |
     2 | Q2340-X    vTMOM              0| | Q2340-X    |  1  -10 -  | READY   |
     3 | Q2330-X    vHG3500    1       0| | Q2330-X    |  1  -07 -  | READY   |
       +--------------------------------+-+------------+------------+---------+

     6 | Q2329-X    SoftGate   1       0| | Q2329-X    |  1  -09 -  | READY   +
        --------------------------------+-+------------+------------+----------
       | IP ADDRESS :  xxx.xxx.xxx.xxx      B-CHANNELS : 250    BCHLCNT : 250 |
       | IP MODE    :     IPV4              DHCP V4   :   NO    DHCP V6 :   NO|
       +--------------------------------+-+------------+------------+----------
