7.8.10.2. Tie Traffic with Incoming Charges and Trunk Traffic in Transit

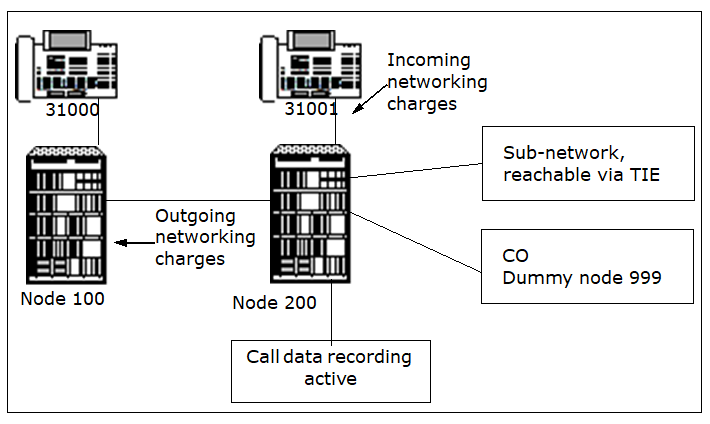

Figure 90. Tie Traffic with Incoming Charges and Trunk Traffic in Transit

Incoming charges should be recorded between the sub-network that is connected via tie trunks and node 200. In addition, call data recording for outgoing trunk traffic is activated in node 200.

Scenario 1: A station from the sub-network calls 31001. In node 200, call data recording is activated for incoming tie trunks and a zone is assigned to the incoming trunk so that charges are calculated by time; these charges should be displayed at the chargeable station 31001.

Scenario 2: Charges should be recorded for outgoing network connections from node 200 to node 100. A subscriber calls 722-31000. In node 200, a dummy station number is assigned to the trunk for call data recording; this is used as the "paying party" for the chargeable link 200-100.

Configuration commands in node 200:

Assign a separate node identifier and separate node number as follows:
```
CHA-ZAND:TYPE=ALLDATA,PNNO=200;
```
Amounts instead of units on the device with:
```
CHA-ZAND:TYPE=CCD,CDDISPEX=AMOUNT;
```
If necessary, increase the buffer for calculation for costs with:
```
ADD-DIMSU:TYPE=BASIC,COSTI=800;
```

Configure the charge display timer as follows:

CHA-CTIME:TYPESWU=CP1,DISPCH=25,CDRDISDE=10;

Add the station numbers in WABE as follows:

ADD-WABE:CD=0,DPLN=0,DAR=CO;

ADD-WABE:CD=31001,DAR=STN;

ADD-WABE:CD=31000,DAR=NETW,DESTNO=3;

ADD-WABE:CD=001,DAR=NETRTE;

Create the COS with the charge authorizations as follows:

CHA-COSSU:TYPE=COS,COS=2,AVCE=CDRSTN,AFAX=CDRSTN,ADTE=CDRSTN;

Add the LCR authorizations as follows:

CHA-COSSU:TYPE=LCOSV,LCOSV=9,ALAUTH=1;

CHA-COSSU:TYPE=LCOSD, LCOSD=5,ALAUTH=1;

Add the outgoing trunk groups TIE and CO as follows:

ADD-BUEND:TGRP=20,NAME=K200TONET,NO=30;

ADD-BUEND:TGRP=30,NAME=K200TO100,NO=30;

ADD-BUEND:TGRP=40,NAME=K200TOAMT,NO=30;

Configure COT for incoming call data recording via ZONE as follows:
```
CHA-COT:COTNO=15,COTTYPE=COTADD,PAR=ICZO;
```
Configure COT for incoming call data recording via ZONE as follows:
```
CHA-COT:COTNO=12,COTTYPE=COTADD,PAR=DPRE&LWNC&NLCR;
```

Assign the charge parameters to the incoming circuit as follows:

ADD-TDCSU:OPT=NEW,COTNO=15,LCOSV=1,LCOSD=1,DEV=S2CONN


,PROTVAR=ECMA1,TGRP=20,BCGR=2,CARRIER=2,ZONE=INC01;

Add the trunk to node 100 as follows:

ADD-
TDCSU:OPT=NEW,COTNO=11,LCOSV=1,LCOSD=1,DEV=S2CONN,PROTVAR=ECM
A1

           ,TGRP=30,BCGR=2;

Add the trunk to the CO as follows:

ADD-
TDCSU:OPT=NEW,COTNO=12,LCOSV=1,LCOSD=1,GER=S2COD,PROTVAR=ETSI


,TGRP=40,BCGR=2,NNO=999,ISDNIP=00,ISDNNP=0,PEN=1113-0;

Assign a "dummy" station number to the trunk circuit as follows:

ADD-
TLZO:TBL=MTLC,LTG=1,LTU=1,SLOT=113,CCR=0,BCHAN=0&&30,STNO=555
55;

Configure the LCR routes for closed numbering as follows:

ADD-
RICHT:MODE=CD,CD=001,LRTE=55,CPS=0,SVC=ALL,TGRP1=30,DESTNO=3

           ,DNNO=100;

ADD-RICHT:MODE=LRTENEW,LRTG=88,LSVC=ALL,TGRP=40,DNNO=999;

Configure the outdial rule for direct trunk connection as follows:

ADD-LODR:ODR=1,CMD=ECHO,FIELD=2;  (send the station number without "0")

ADD-LODR:ODR=1,CMD=END;

Assign the outdial rule for networking (closed numbering) as follows:

ADD-LODR:ODR=2,CMD=ECHO,FIELD=1;  (send the entire station number)

ADD-LODR:ODR=2,CMD=END;

Define the LCR element with trunk group seizure order as follows:

ADD-LDAT:LROUTE=55,LSVC=ALL,LVAL=1,TGRP=30,LAUTH=1,ODR=2;

ADD-LDAT:LROUTE=88,LSVC=ALL,LVAL=1,TGRP=40,LAUTH=1,ODR=1;

Configure the dialing plan for the CO as follows:
```
ADD-LDPLN:LDP=0-Z,LROUTE=88,LAUTH=1;
```

Give the LCR element charge attributes (outgoing to node 100) as follows:

CHA-LDAT:LROUTE=55,LSVC=ALL,LRTEL=1,CARRIER=2,ZONE=TIE02

          ,LATTR=WCHREG;

Configure the LCR element for the CO with outgoing call data recording as follows:
```
CHA-LDAT:LROUTE=88,LSVC=ALL,LRTEL=1,LATTR=WCHREG;
```

Parameterize the stations as follows:

CHA-SBCSU:STNO=31001,COS1=2,COS2=2,LCOSV1=9,LCOSV2=9,LCOSD1=9

           ,LCOSD2=9;

Activate the feature centrally as follows (TIE incoming, TIE outgoing, CO outgoing):
```
CHA-FEASU:TYPE=A,CM=CDROGTR&DISCHTR&CDROGNW&DISCHNW&CDRIC;
```
