8.11.2.3.1. Installation of the keysystem network wide via two nodes Previous topic Parent topic Child topic Next topic

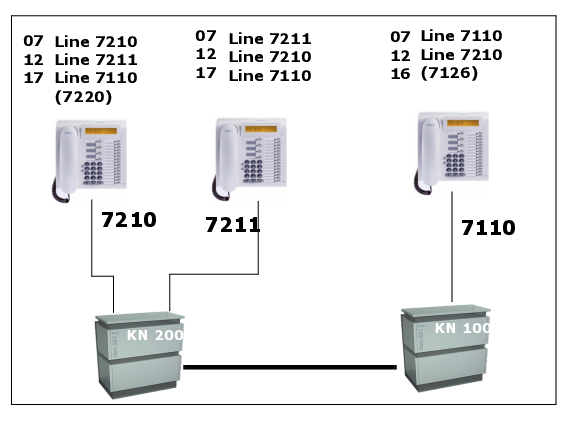

  • The subscribers 7210 and 7211 are added in node 10-30-200.
  • The subscriber 7110 is added in node 10-30-100.
  • These three subscribers form a Team.
  • Node 200 (SYS 1)
    Add a key layout
    CHANGE-TAPRO:STD=127,DIGTYP=OPTIT19,KY01=CH,KY02=SNR,
KY03=FREE,KY04=SPKR,KY07=LINE,KY12=LINE,KY17=LINE,
KY19=RLS,INFO="KEY-EXECUTIVE TI";
    New COS with Goupcall (GRPCAL)
    ADD-COSSU:NEWCOS=333,AVCE=TA&TNOTCR&CDRSTN&COSXCD&MB&
CFNR&FWDNWK&TTT&FWDECA&GRPCAL,AFAX=TA&TNOTCR&BASIC&MSN&
MULTRA,ADTE=TA&TNOTCR&BASIC&MSN&MULTRA,INFO="FOR KEYSYSTEM TI";
    Subscribers
    ADD-SBCSU:STNO=7210,OPT=OPTI,CONN=DIR,PEN=1-2-4-6,DVCFIG=OPTIP500,
COS1=333,COS2=333,LCOSV1=9,LCOSV2=9,LCOSD1=9,LCOSD2=9,DPLN=0,ITR=0,
REP=1,STD=127,TEXTSEL=ENGLISH,CALLOG=TRIES;

ADD-SBCSU:STNO=7211,OPT=OPTI,CONN=DIR,PEN=1-2-4-7,DVCFIG=OPTIP500,
COS1=333,COS2=333,LCOSV1=9,LCOSV2=9,LCOSD1=9,LCOSD2=9,DPLN=0,ITR=0,
REP=1,STD=127,TEXTSEL=ENGLISH,CALLOG=TRIES;
    Phantom subscriber
    ADD-SBCSU:STNO=7220,OPT=OPTI,CONN=DIR,DVCFIG=OPTIP500,COS1=333,
COS2=333,LCOSV1=9,LCOSV2=9,LCOSD1=9,LCOSD2=9,STD=127,INS=SIGNOFF;
    Add the KEYSYSTEM
    • primary
      ADD-KCSU:STNO=7210,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=RING,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7211,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=RING,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7220,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=RING,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;
    • secondary
      ADD-KCSU:STNO=7210,TYPE=SEC,KYNO=12,STNOSEC=7211,
RIOP=NO,AICS=NO;

ADD-KCSU:STNO=7210,TYPE=SEC,KYNO=17,STNOSEC=7220,
RIOP=NO,AICS=NO;

ADD-KCSU:STNO=7211,TYPE=SEC,KYNO=12,STNOSEC=7210,
RIOP=NO,AICS=NO;

ADD-KCSU:STNO=7211,TYPE=SEC,KYNO=17,STNOSEC=7220,
RIOP=NO,AICS=NO;
      Add network wide pickup group for TSC-Signaling
      CHANGE-ZAND:TYPE=ALLDATA3,NETTEAM=YES;

ADD-AUN:GRNO=2,STNO=7210,REMAC=803001,REMGRNO=2,DISTNO=YES,
NOTRNG=ON3,PUSECOND=YES,SIGNAL=ALL,REMSIGO=YES;

ADD-AUN:GRNO=3,STNO=7211,REMAC=803001,REMGRNO=3,DISTNO=YES,
NOTRNG=ON3,PUSECOND=YES,SIGNAL=ALL,REMSIGO=YES;

ADD-AUN:GRNO=4,STNO=7220,REMAC=803001,REMGRNO=4,DISTNO=YES,
NOTRNG=ON3,PUSECOND=YES,SIGNAL=ALL,REMSIGO=YES;
  • Node 100 (SYS 2)
    Add a key layout
    CHANGE-TAPRO:STD=127,DIGTYP=OPTIT19,KY01=CH,KY02=SNR,
KY03=FREE,KY04=SPKR,KY07=LINE,KY12=LINE,KY16=LINE,
KY19=RLS,INFO="KEY-EXECUTIVE TI";
    New COS with Goupcall (GRPCAL))
    ADD-COSSU:NEWCOS=333,AVCE=TA&TNOTCR&CDRSTN&COSXCD&MB&
CFNR&FWDNWK&TTT&FWDECA&GRPCAL,AFAX=TA&TNOTCR&BASIC&MSN&
MULTRA,ADTE=TA&TNOTCR&BASIC&MSN&MULTRA,INFO="FOR KEYSYSTEM TI";
    Subscriber
    ADD-SBCSU:STNO=7110,OPT=OPTI,CONN=DIR,PEN=1-1-49-6,DVCFIG=OPTIP500,
COS1=333,COS2=333,LCOSV1=9,LCOSV2=9,LCOSD1=9,LCOSD2=9,DPLN=0,
ITR=0,REP=1,STD=127,TEXTSEL=ENGLISH,CALLOG=TRIES;
    Phantom subscriber
    ADD-SBCSU:STNO=7126&7127,OPT=OPTI,CONN=DIR,DVCFIG=OPTIP500,
COS1=333,COS2=333,LCOSV1=9,LCOSV2=9,LCOSD1=9,LCOSD2=9,STD=127,
INS=SIGNOFF;
    Add the KEYSYSTEM
    • primary
      ADD-KCSU:STNO=7110,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=RING,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7126,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=RING,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;

ADD-KCSU:STNO=7127,TYPE=PRIM,PRIMKEY=7,RIOP=YES,
ORLNPF=PRIME,TMLNPF=RING,BUSYRING=ALERT,APRIVAT=NO,
AICS=NO;
    • secondary
      ADD-KCSU:STNO=7110,TYPE=SEC,KYNO=12,STNOSEC=7126,
RIOP=YES,AICS=NO;

ADD-KCSU:STNO=7110,TYPE=SEC,KYNO=16,STNOSEC=7127,
RIOP=YES,AICS=NO;
      Add network wide pickup group for TSC-Signaling
      CHANGE-ZAND:TYPE=ALLDATA3,NETTEAM=YES;

ADD-AUN:GRNO=2,STNO=7126,REMAC=803002,REMGRNO=2,DISTNO=YES,
NOTRNG=ON3,PUSECOND=YES,SIGNAL=ALL,REMSIGO=YES;

ADD-AUN:GRNO=3,STNO=7127,REMAC=803002,REMGRNO=3,DISTNO=YES,
NOTRNG=ON3,PUSECOND=YES,SIGNAL=ALL,REMSIGO=YES;

ADD-AUN:GRNO=4,STNO=7110,REMAC=803002,REMGRNO=4,DISTNO=YES,
NOTRNG=ON3,PUSECOND=YES,SIGNAL=ALL,REMSIGO=YES;

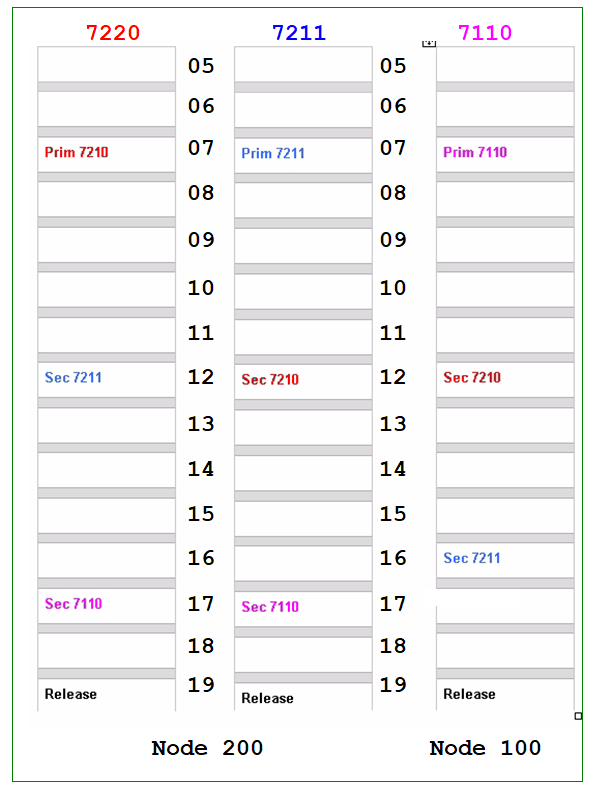

Key layout after generating this step
