5.6.3.1. Partial Integration Ring Generator Previous topic Parent topic Child topic Next topic

  • The board board is configured like a Ring Generator (RG) and is plugged in a peripheral slot of the OpenScape 4000. It only gets power from the OpenScape 4000 switch. No direct signalling and administration is supported.
  • The connection to OpenScape 4000 is done via a separate DIUS2 board.
  • In this configuration the board is loaded and administrated via V.24 interface from a separate PC (CDGM-Tool).
  • This configuration only uses one circuit of the PBXXX i.e. 30 B channels

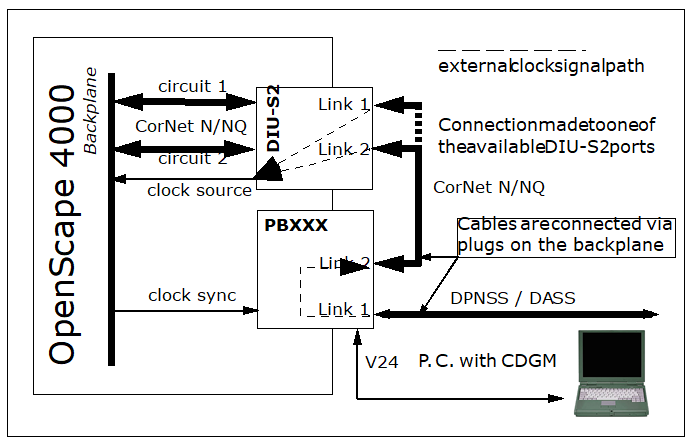

    Figure 14. PBXXX - Partial-integration-RG
