5.6.3.2. Partial Integration DIUS2 Previous topic Parent topic Child topic Next topic

  • The board is configured like a DIUS2 board and is plugged in a peripheral slot of the OpenScape 4000.
  • The board is connected directly to the OpenScape 4000 backplane and supports the DIUS2 message interface.
  • But the board is still loaded and configured via V.24 interface from a separate PC (CDGM-Tool).

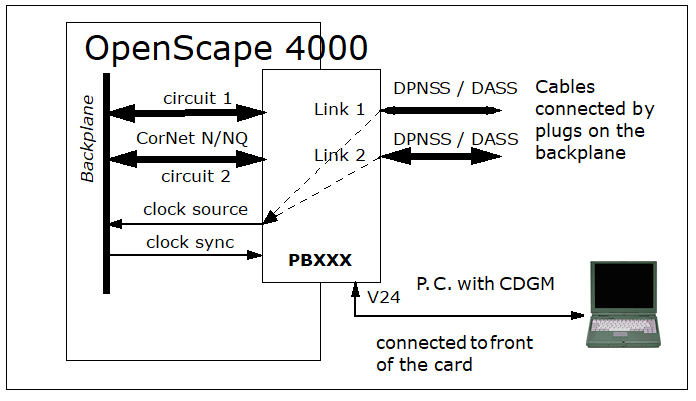

    Figure 15. PBXXX - Partial-integration-DIUS2
