5.12.5.1. Configuration of the system interface
The user and the network
side must be configured separately using AMO TDCSU.
|
Network side
|
User side
|
|
|
Protocol
|
EDSS1NET
|
EDSGER
|
|
Connection
|
S0CONN
|
S0COD
|
|
ISDN STNO
|
78072 (ISDN E164 / SUBSCR)
|
78070 (ISDN E164 / SUBSCR)
|
- Allocate memory for AMO SCREN
ADD-DIMSU:DSS1SCRD=10, DSS1SCRP=30, TYPE=NET;
- Configure trunk groups and COT/COP parameters
ADD-BUEND:TGRP=140, NAME=EDSS1_TRUNK INTERFACE, NO=2; ADD-COT:COTNO=140,PAR=NTON&AEOD&FWDN&CBBN&BLOC&NLCR& TSCS&DFNN&NLRD&CFTR&VCMN&BCNE; ADD-COP:COPNO=140,PAR=L3AR;
- Configure circuit
EINR-TDCSU:ART=NEU, LAGE=1-02-079-5, COTNR=140, COPNR=140, WABE=0, VBZ=0, COS=90, LCOSS=7, LCOSD=7, SATZNR="DSS1 NETSIDE", ZLNR=40,PROTVAR="EDSS1NET", SEGMENT=1, KNNR=1-89-410, FIDX=1, CARRIER=4, ZONE=LEER, COTX=140, AULX=5, GER=S0VERB, ANZ=1, INBETR=J, BUNR=140, SUCHART=AUF, MASTER=JA, SMD=JA, CNTRNR=0, BKVER=N;

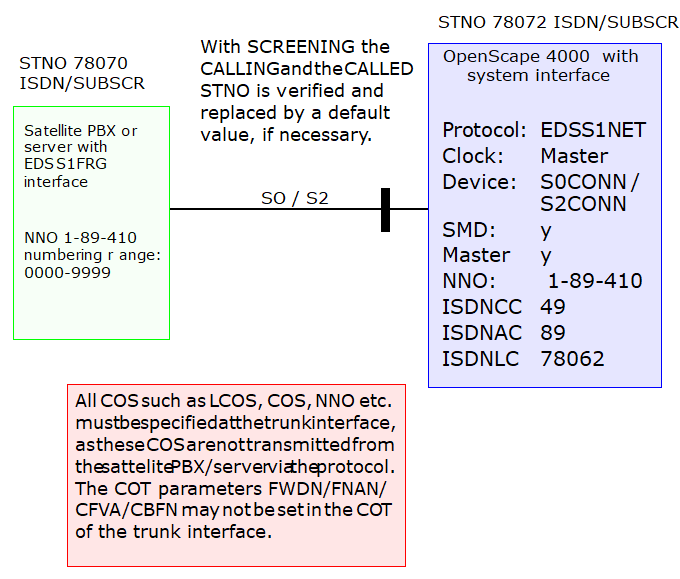

- Configure the route to the external PBX. Node 1-89-410 NPI ISDN, TON=Subscriber. For
TON=national and international separate routes must be configured, if required.
ADD-RICHT:MODE=LRTENEW, LRTE=140, LSVC=ALL, NAME=DSS1 NETSIDE, TGRP=140, DNNO=1-89-410, ROUTOPT=NO, REROUT=NO, DTMFCNV=FIX, DTMFDISP=DIGITS, DTMFTEXT="MFV_NW", PLB=YES;
- Configure LODR and LDAT AMOs to the node 1-89-410, NPI ISDN, TON=Subscriber.
ADD-LODR:ODR=140, CMD=ECHO, FIELD=2; ADD-LODR:ODR=140, CMD=ECHO, FIELD=3; ADD-LODR:ODR=140, CMD=NPI, NPI=ISDN, TON=SUBSCR; ADD-LODR:ODR=140, CMD=END; ADD-LDAT:LROUTE=140, LSVC=ALL, TGRP=140, ODR=140, LAUTH=1, CARRIER=4, ZONE=EMPTY; ADD-LDPLN:LDP=0-78070-X, LROUTE=140, LAUTH=1;
