5.16.7.2. Service Information
The numbers of a closed numbering network must be unique.
Closed numbering is used within Areas (so-called OpenScape 4000 Domains).
The WABE entries in such a network (Area) must be consistent, i.e. entries for call numbers must lead to the corresponding destination number.
Virtual node numbering structure in the case of closed numbering networks is not sensible in the I.M.
With the help of the AMO WABE, the physical destination node number can be displayed.
NWLCR is the typical OpenScape 4000 numbering with NPI=unknown, which is primarily used for the internal company area

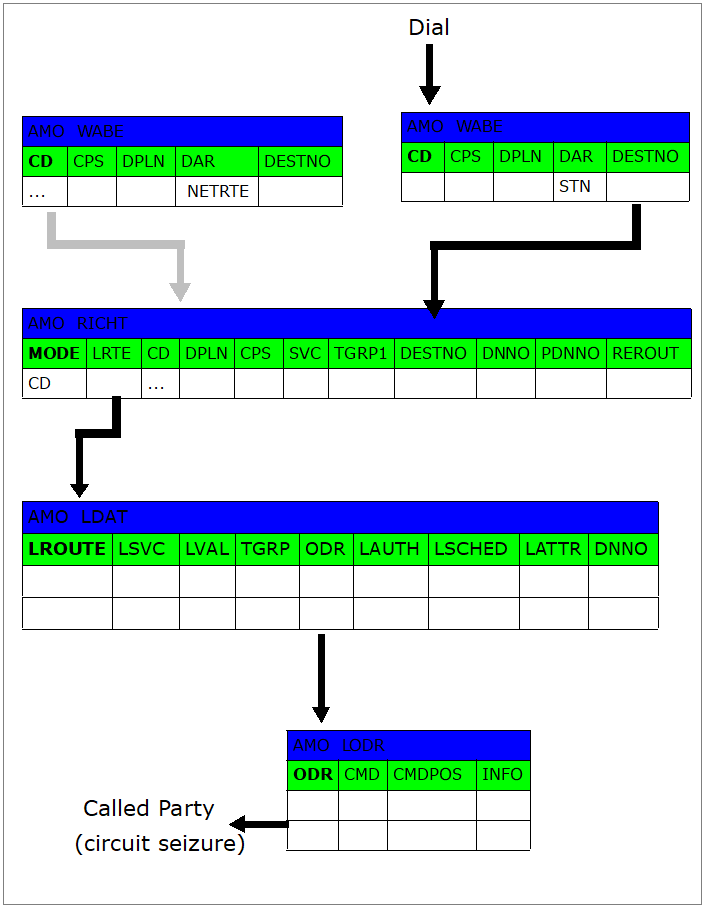

Figure 30. Call Setup Procedure via Networking LCR
