5.18.1.1. Compelled Signaling According to MFC-R2 Previous topic Parent topic Child topic Next topic

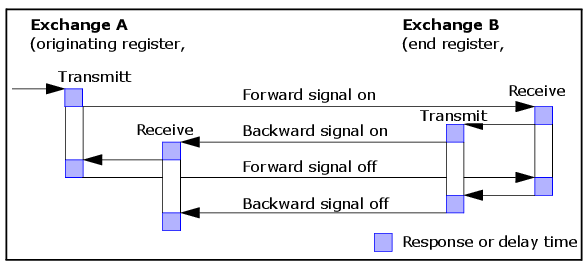

In this type of signaling, Exchange A sends each forward signal to Exchange B until the remote central office (exchange B) recognizes it and acknowledges it with a backward signal (from B to A). The exchange of signals always starts with the sending of a forward signal (signal offer). As soon as Exchange A detects the acknowledge signal, it deactivates the pending forward signal. As soon as Exchange B detects that the forward signal has been dropped, it deactivates the backward signal.
