5.36.5.1.2. Example
OpenScape 4000 is located in Munich and AP in Hamburg. One attendant
console group each is configured at both locations with the same codes
(access code 0 for calls from the central office and attendant code 900
for internal calls).

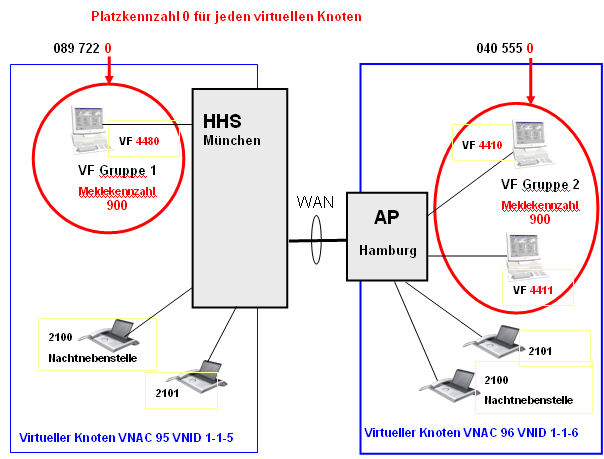

Figure 77. Attendant console groups with VNR
Availability of attendant consoles/attendant console groups
- From the CO with the relevant E.164 station number in accordance with the virtual node and access code (Example: As shown in the diagram, 089 722 0 to the Munich AC group or 040 555 0 to the AC group in Hamburg).
- Stations at the OpenScape 4000 or the AP reach the AC group belonging to the local virtual node via the attendant code without the node code (900). They reach the AC group belonging to another virtual node by dialing the node code and attendant code (from Munich to Hamburg e.g. 96 900)
- Stations at the OpenScape 4000 or the AP reach the attendant console belonging to the local virtual node via their own station number without the node code (4480). They reach an attendant console belonging to another virtual node by dialing the node code and their own station number (from Munich to Hamburg e.g. 96 4410)
Administration for the application example
- Configuring the station numbers in the DPLN
DAR = ATND (900) DAR = ATND (0) DAR = VPI (4410,4411,4480) (DAR = GENANS)
- Configuring the attendant consoles in the AMO ACSU
ADD-ACSU:ATNDNO=954480,...; ADD-ACSU:ATNDNO=964410,...; ADD-ACSU:ATNDNO=964411,...;
- Configuring the night options
ADD-NAVAR:NOPTNO=1,TYPE=STN,STNO=952100; ADD-NAVAR:NOPTNO=2,TYPE=STN,STNO=962100; ADD-NAVAR:NOPTNO=3,TYPE=CASINT,ATNDGR=2; ADD-NAVAR:NOPTNO=4,TYPE=CASINT,ATNDGR=1;
- Configuring the attendant console groups
ADD-VFGR:ATNDGR=1,QUEMODE=DW,ATNDNO=954480,....; ADD-VFGR:ATNDGR=2,QUEMODE=DW,ATNDNO=964410&964411,....;
- Configuring the code - group assignments
ADD-VFGKZ:TYPE=ATNDGR,CD=950,CPS=6,ATNDGR=1; ADD-VFGKZ:TYPE=ATNDGR,CD=960,CPS=6,ATNDGR=2; ADD-VFGKZ:TYPE=ATNDGR,CD=95900,CPS=5,ATNDGR=1; ADD-VFGKZ:TYPE=ATNDGR,CD=96900,CPS=5,ATNDGR=2;
