10.2.3. HG 3500 as HG3570 in the OpenScape 4000 System
For more information on HG 3500 gateway please refer to „Gateways
HG 3500 and HG 3575“.
The common gateway HG 3500 - added as HG3570 - establishes the payload
connections between the central OpenScape 4000 system and the access
points distributed within the framework of the IP distributed architecture.
- HG 3500 gateways, configured as HG 3570, may only be used in the peripheral shelves (LTU 1-15) of the central system.
- The time slots required by the HG 3570 gateways in a half shelf must be nonblocking. The maximum number of B channels supported by the board hardware can be reduced using the BCHLCNT command in the AMO BFDAT.
- Every shelf in which a HG 3570 is installed must be equipped with an LTUCX module.
- Up to 83 HG 3570 gateways can be used in a OpenScape 4000 system. The payload connections between the central OpenScape 4000 system and the access points are distributed evenly across all HG 3500s.
- There is no assignment of payload connections from HG 3575 to HG 3500. The number of HG 3500s in the system is based on the traffic volume, not on the number of access points. If one HG 3500 fails, it is not assigned any new calls. The other available HG 3500s take on the payload.

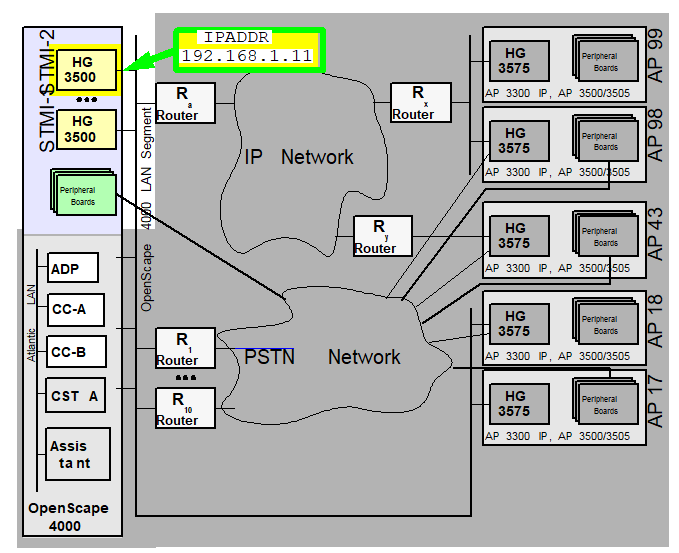

Figure 183. Configuring a HG 3500 for IPDA
ADD-BFDAT: |
FCTBLK=1, |
FUNCTION=HG3570, |
BRDBCHL=BCHL60&BCHL120; |
||
CHANGE-BFDAT: |
CONFIG=CONT, |
FCTBLK=1, |
FUNCTION=HG3570, |
BCHLCNT=40; |
|
CHANGE-BFDAT: |
CONFIG=OK, |
FCTBLK=1, |
ANSW=YES; |
||
ADD-BCSU: |
MTYPE=IPGW, |
LTU=5, |
SLOT=91, |
PARTNO=Q2316-X, |
|
FCTID=1, |
FCTBLK=1, |
|
IPADR=192.168.1.11, |
BKAN3570=40; |
|
CHNAGE-BCSU: |
TYPE=HWYBDL, |
LTU=5, |
SLOT=91, |
PARTNO=Q2316-X, |
|
HWYBDL=A; |
Generation
A HG 3500 module with FUNCTION=HG3570 is configured with 3
AMOs: AMO BFDAT, AMO BCSU and AMO CGWB.
However, AMO CGWB is only needed if additional routes in the IP network
are required in addition to the default router in the OpenScape 4000
LAN segment. Please refer to Section 2.5,
“Special Routes”.
BFDAT
Configuration of the functional blocks for common gateway boards for
IPDA.
 |
Configuration Management > System Data > Board > CGW Function Block
Click New, enter data and click Save.
|
 |
ADD-BFDAT:FCTBLK=1,FUNCTION=HG3570,BRDBCHL=NCHL&BCHL;
CHA-BFDAT:CONFIG=CONT,FCTBLK=1,FUNCTION=HG3570,BCHLCNT=40;
CHNAGE-BFDAT:CONFIG=OK,FCTBLK=1,ANSW=YES;
|
|
AMO
|
Parameter
|
Sprache/ Language
|
Beschreibung/ Description
|
|
BFDAT
|
ANZBKAN
|
d
|
Anzahl der funktionsbezogenen B-Kanäle.
|
|
BCHLCNT
|
e
|
Defines the number of b-channels related to
the selected function.
|
|
|
ANTW
|
d
|
JA: Block-KOnfiguration abschließen
|
|
|
ANSW
|
e
|
YES: Finish block configuration
|
|
|
BGBKAN
|
d
|
Block fuer Baugruppe mit 60 und/oder 120 B-Kanaelen
|
|
|
BRDBCHL
|
e
|
Dedicates the block for boards with 60 and/or
120 b-channels.
|
|
|
CONFIG
|
d
|
WEITER: Weitere Block-Konfiguration möglich
OK:
Block-Konfiguration abschließen
|
|
|
CONFIG
|
e
|
CONT: Continue block configuration
OK:
Finish block configuration
|
|
|
FCTBLK
|
d
|
Dieser Index beschreibt den Funktionsblock welcher
auf dem CGW konfiguriert werden soll. Anhand des Funktionsblocks wird
die Konfiguration der benötigten pyhsikalischen Lines (Sätze der Baugruppe)
festgelegt.
|
|
|
FCTBLK
|
e
|
This index describes the function block which
should be configured on the CGW board. With that index the amount of
needed physical lines (board circuits) is calculated.
|
|
|
FUNCTION
|
d
|
Dieser Parameter legt das Konfigurationsprofile
des Common Gateways fest. Dabei muss die benötigte HG3570 Funktion als
erste angeführt werden. Falls ein bestimmter Line-Bereich für die Funktionen
HG3530, HG3540 oder HG3550 vorreserviert werden soll, muss die entsprechende
Funktion am Ende stehen und mit dem Wert HG35xxR abgeschlossen sein.
Die Funktion STANDBY kann nur als Einzel-Funktion konfiguriert werden.
|
|
|
FUNCTION
|
e
|
This parameter defines the configuration profile
of the CGW board. If HG3570 functionality is used, it must be configured
at first position. If a prereservation of a certain line range of functions
HG3530, HG3540 or HG3550 is desired, this function must be at the end
of the profile just suffixed by the according HG35xxR value. The function
STANDBY can only be configured as single function.
|
BCSU
The modules are configured in the system and activated with the AMO
BCSU.
|
|
Configuration Management > System Data > Board > Board
Click New, enter data (IP Address, section IP Gateway, STMI
Board Data tab) and Save.
|
|
|
ADD-BCSU:MTYPE=IPGW,LTU=5,SLOT=91,PARTNO=Q2316-X,FCTID=1,FCTBLK=1,IPADDR=192.168.1.11,BCHL3570=40;CHANGE-BCSU:TYPE=HWYBDL,LTU=5,SLOT=91,PARTNO=Q2316-X,HWYBDL=A; |
IMPORTANT:
Prior to
ADD-BCSU, use ping
to check that the IP addresses given to you by the administrator are
reachable. IPADDR must not respond as this would indicate that
the corresponding address has already been assigned. IPADDR must
be set differently for every board. The AMO does not verify if this rule
is observed.|
AMO
|
Parameter
|
Sprache/ Language
|
Beschreibung/ Description
|
|
BCSU
|
BKAN3570
|
d
|
Anzahl der B-Kanaele fuer die IPDA (HG3570) Funktion
|
|
BCHL3570
|
e
|
Amount of b-channels for IPDA (HG3570) function
|
|
|
LTG
|
d
|
LTG-Nummer
Parameter kann entfallen - oder muss auf 1 gesetzt werden.
|
|
|
LTG
|
e
|
Line/Trunk Group Number
Parameter can be omitted - or must be set to 1.
|
|
|
LTU
|
d
|
LTU-Nummer des Rahmens, in dem die HG 3500 eingesetzt wird.
Die HG 3500 darf nur in den Rahmen des OpenScape 4000 Zentralsystems (LTU 1..15)
eingesetzt werden. Der Rahmen muss mit einer LTUCX Baugruppe ausgestattet sein.
|
|
|
LTU
|
e
|
Line/Trunk Unit Number of the shelf where the HG 3500 is plugged.
An HG 3500 may only be used in a shelf of the OpenScape 4000 central system (LTU 1..15).
The shelf must be equipped with a LTUCX board.
|
|
|
EBT
|
d
|
Einbauteilung des Steckplatzes der HG 3500
|
|
|
SLOT
|
e
|
Slot where the HG 3500 resides.
|
|
|
SACHNR
|
d
|
Sachnummer der HG 3500-Baugruppe
|
|
|
PARTNO
|
e
|
Part Number of the HG 3500 Board
|
|
|
FCTID
|
d
|
Function ID
|
|
|
FCTID
|
e
|
Function ID
|
|
|
LWVAR
|
d
|
LW Parametrisierung
Wird für HG 3500 nicht benötigt. Wert sollte ausgelassen oder auf 0 gesetzt werden.
|
|
|
LWVAR
|
e
|
LW Parametrization
Not needed for HG 3500. Parameter should be omitted or set to 0.
|
|
|
IPADR
|
d
|
IP-Adresse der HG 3500 Baugruppe
Diese IP-Adresse muss zum OpenScape 4000 LAN Segment gehören (siehe NETADR im AMO
SIPCO, Table 1
“AMO SIPCO parameters in ADD branch or for CHANGE under TYPE=LSNET”)
IPADR muss für jede Baugruppe unterschiedlich sein. Der AMO prüft nicht die
Einhaltung dieser Regel.
|
|
|
IPADDR
|
e
|
IP Address of the HG 3500 Board
This IP address must belong to the OpenScape 4000 LAN Segment (see NETADDR in AMO
SIPCO, Table 1
“AMO SIPCO parameters in ADD branch or for CHANGE under TYPE=LSNET” on page
2-650)
IPADDR must be different for every board. The AMO does not check compliance with this
rule.
|
|
|
HWYBDL
|
d
|
Highway Bündel
Die HG 3500 / STMI2/4/STMIX/STMIY Baugruppe unterstützt die Wideband Technologie.
Deshalb muss
der Baugruppe entweder das Highway Bündel A (default) oder F zugewiesen werden.
|
|
|
HWYBDL
|
e
|
Highway Bundle
The HG 3500 / STMI2/4/STMIX/STMIY board supports wideband technology. Thus either
highway
bundle A (default) or F must be assigned to this board.
|
|
|
TYPE=IPGW
|
d
|
Baugruppentyp
IP Gateway = Common Gateway
|
|
|
MTYPE=IPGW
|
e
|
board hardware type
IP gateway = common GATEWAY
|
