2.21.4.1. Payload Previous topic Parent topic Child topic Next topic

Depending on the board in use (HG 3500 or HG 3575), ports used are taken from a certain port range defined by the parameter UDPPORT (AMO SIPCO). The port range for RTP/RTCP is defined by the following interval: [UDPPORT .. UDPPORT + 960].
Port 4007 is used for a path test in the case of poor payload quality. See Section 2.9.1, “When is Payload Survivability Used?” in the document "IP Distributed Architecture (IPDA)" - keyword "UDP-PINA".

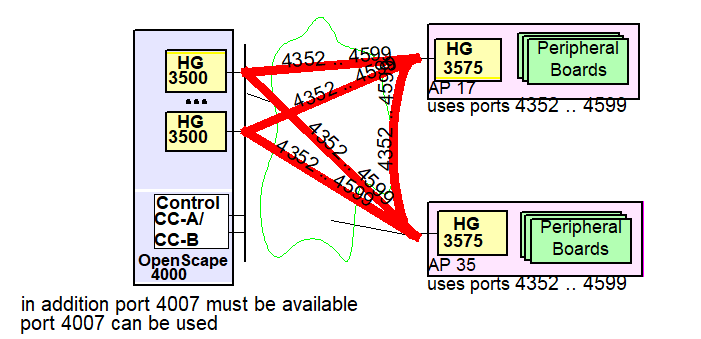

Figure 39. Example: Port usage for payload
