The following section describes shortly how to configure the OpenScape 4000 SIP Load Balancer (SLB) in combination with Gateways.
The Gateways have to be added manually. The Gateway configuration is done in the WBM of the OpenScape 4000 SoftGate. One entry has to be configured for each Gateway.
WBM > Configuration > SIP Load Balancer > Status
  • Adding a rule in SLB
    Enter all necessary/needed parameters in the text boxes at the bottom of the page and click Add Rule.
  • Changing an existing rule in SLB
    If an existing rule must be modified simply add all necessary/needed parameters again in the text boxes and click Add Rule. The existing rule will be replaced with new parameters.

Necessary/needed fields

  • LTU
    This parameter displays the unique identifier of the shelf.
  • Slot
    In case of an OpenScape 4000 gateway this column can be used for the shelf configuration slot. However technically it does not affect the functionality itself and is used for orientation purpose.
  • Gateway IPv4 Address
    IP address of the Gateway (e.g. 192.1.11.182)
  • IPv4 Port
    SIP port of the Gateway (e.g. 5060)
  • IPv4 TLS Port
    SIP Port is used for signaling data encrypted with TLS (Transport Layer Security) (e.g. 5061).
  • Gateway IPv6 Address
    IP Address of the gateway in IPv6 format.
  • IPv6 Port
    SIP Port is used for unencrypted signaling data (e.g. 5060).
  • IPv6 TLS Port
    SIP Port is used for signaling data encrypted with TLS (Transport Layer Security) (e.g 5061).
  • Routing Number
    The prefix of a dial-in number of a phone (e.g +498). It restricts the usage of the registered gateways for the phone numbers that have matching prefixes with the routing number (e.g. 49897000719999)
  • Max Number of B-Channels
    In best case the maximum possible parallel channels of each gateway should be used. The maximum number of B channels for gateways is 120.

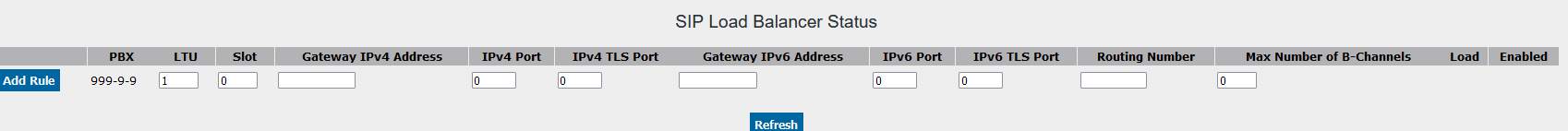

    Figure 125. Registration of Gateways
