14.5.5.6. Configuration Example OpenScape SBC (CompanyFlex) Previous topic Parent topic Child topic Next topic

The SBC is similar to the configuration of the DeutschlandLAN SIP trunk.

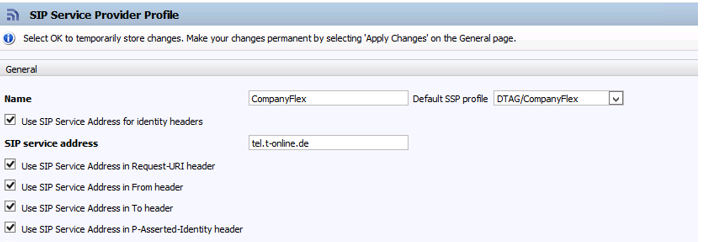

There is an own profile for CompanyFlex:
„Use SIP Service Address for identity headers“ has to be set manually.

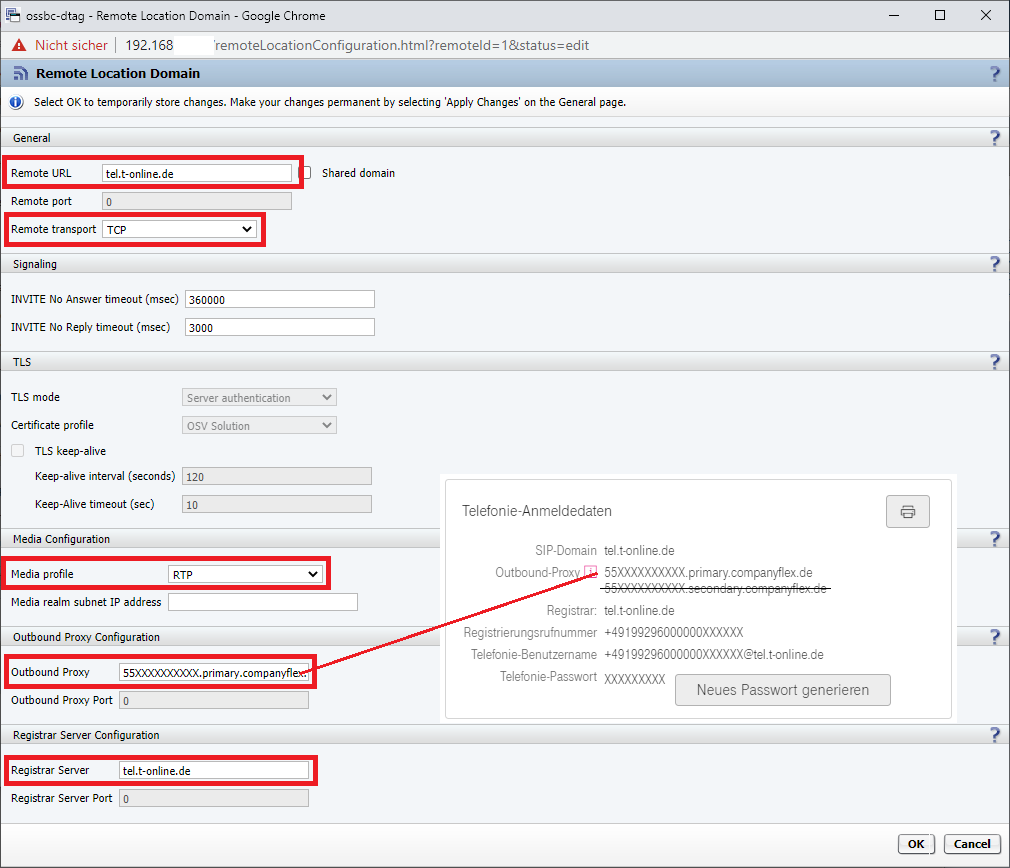

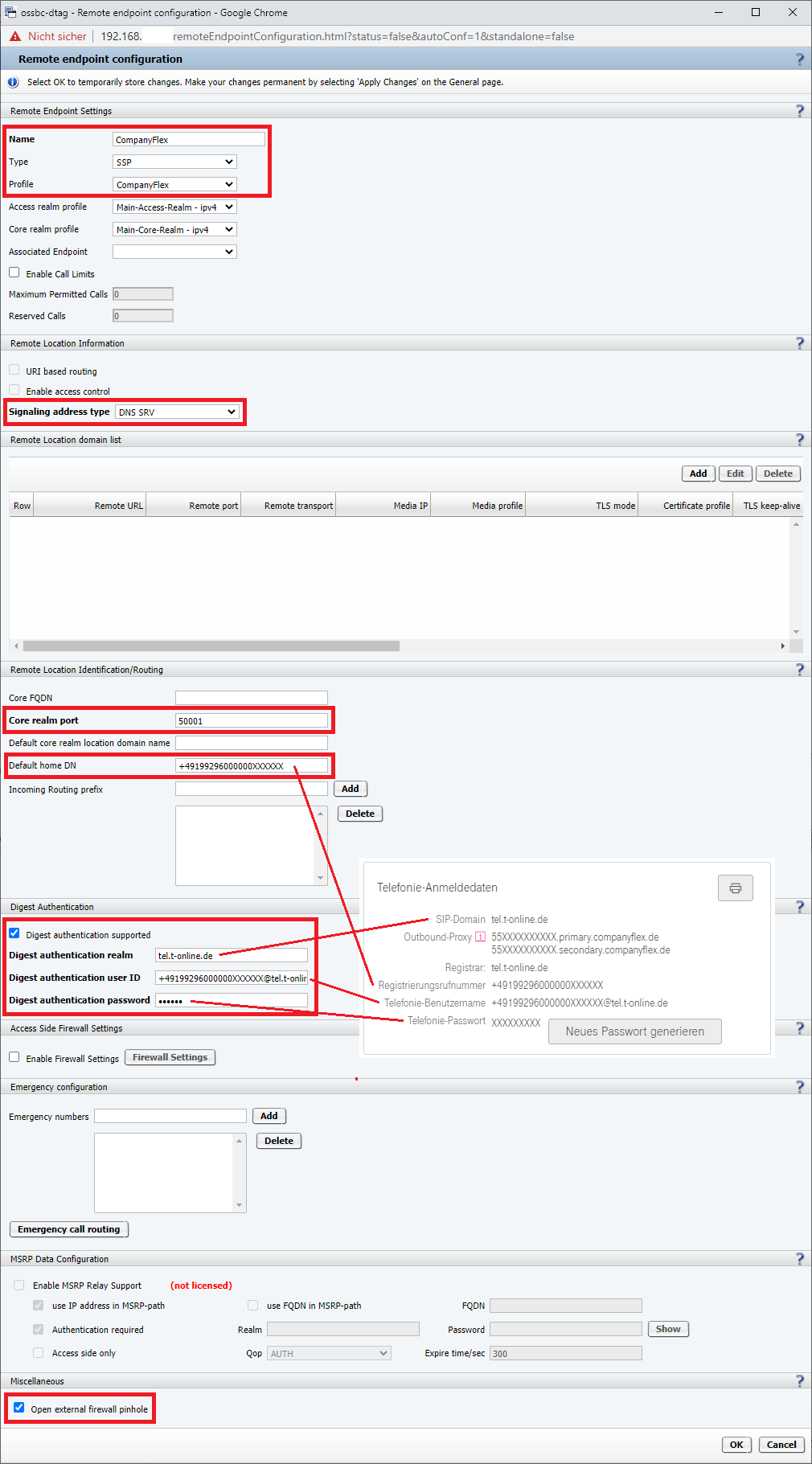

Example „Remote Endpoint Configuration” and „Remote Location Domain“ configuration (unencrypted communication TCP/RTP):
