5.21.2.2.1. Three-level, open-numbered network/one-level OpenScape 4000 specific numbering plan Previous topic Parent topic Child topic Next topic

In this example shown in Figure 55, the ISDN and PRIVATE numbers are also three-level according to the rule following the three-level node numbers. In the OpenScape 4000 specific numbering plan with tie line codes, however, where the numbers should be as short as possible, numbering usually continues to be one-level (e.g. one-level node code) if the numbers are unique within the network.
The local subscriber 4711 in Node 1-1-100, for example, is reached via the numbers:
  • 19-4711 in the UNKNOWN numbering plan, whereby:
    19 = node code
  • 0-00-49-89-722-4711 in the ISDN numbering plan (E.164), whereby:
    0 = exit code in the ISDN numbering plan 00 = international prefix 49 = country code (CC) 89 = area code (AC) 722 = local destination code (LC)
  • 15-11-39-719-6051-4711 in the PRIVATE (PNP) numbering plan, whereby:
    15 = exit code in the PRIVATE numbering plan 11 = Level 2 prefix 39 = Level 2 code (L2C) 719 = Level 1 code (L1C) 6051 = local destination code (LC)

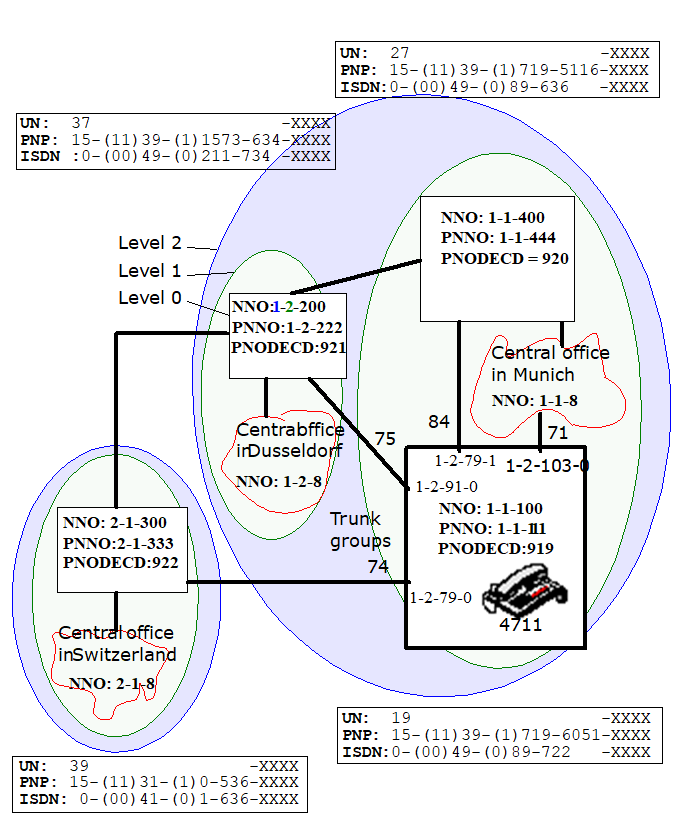

    Figure 53. Example: Three-level network, node numbers, and numbers

    Abbreviations: UN = UNKNOWN, PNP = PRIVATE (numbering plan), XXXX = Station number (1 - 6-digit, up to 8 digits in special configurations) Prefixes are specified in parentheses.

Configuration in physical node 1-1-111

IMPORTANT:
Normally, you must only perform modifications in the UNKNOWN numbering plan using KNMAT; the other numbers are controlled via format-dependent modification.
  • Set the node table (with virtual node code):
    ADD-KNDEF:NNO=1-1-100,TYPE=OWN,ISDNCC=49,ISDNAC=89,ISDNLC=722,
ISDNSK=3,ISDNUL=EXT,PNPL2C=39,PNPL1C=719,PNPLC=6051,PNPSK=4,
PNPUL=EXT,NODECD=19,NODECDSK=2;

CHANGE-KNDEF:NNO=1-1-100,DFLT=Y;
  • Set the node prefix table for both NPIs:
    ADD-KNPRE:NPI=PRIVATE,TON=LEVEL2,EXIT=15,PREFIX=11;

ADD-KNPRE:NPI=PRIVATE,TON=LEVEL1,EXIT=15,PREFIX=1;

ADD-KNPRE:NPI=PRIVATE,TON=LOCAL,EXIT=15;

ADD-KNPRE:NPI=ISDN,TON=INTERNAT,EXIT=0,PREFIX=00;

ADD-KNPRE:NPI=ISDN,TON=NATIONAL,EXIT=0,PREFIX=0;

ADD-KNPRE:NPI=ISDN,TON=SUBSCR,EXIT=0;
  • Enter the own node number in the ZAND data:
    CHA-ZAND:TYPE=ALLDATA,PNNO:=1-1-111;
  • Set the own physical code in WABE and in ZAND data:
    ADD-WABE:CD=919,DAR=OWNNODE;

CHA-ZAND:TYPE=ALLDATA,PNODECD=919;
  • Set the CO and PNP exit codes in WABE:
    ADD-WABE:CD=0,DAR=TIE; /* CO */
 ADD-WABE:CD=15,DAR=TIE;
  • Set tie line codes for NPI=UNKNOWN in WABE (for other nodes):
    ADD-WABE:CD=27,DAR=TIE;
 ADD-WABE:CD=37,DAR=TIE;
 ADD-WABE:CD=39,DAR=TIE;
  • Set trunk groups for direct CO connection:
    ADD-BUEND:TGRP=71,NAME="AMT-DIU-S2 ",NO=60,RSV=NO;
  • Set COT with LWNC for the central office:
    ADD-COT:COTNO=37,PAR=NLCR&ANS&COTN&NTON&IEVT&ICZL&IIDL&IVAC&INAU&
ITB&IDND&IFR&IDIS&LWNC,INFO="COT FOR CO";
  • Set the trunk circuit:
    ADD-TDCSU:OPT=NEW,PEN=1-2-103-00,COTNO=37,COPNO=56,COS=1,
LCOSV=1,LCOSD=1,DESTNO=8,PROTVAR=EDSGER,BCNEG=Y,ISDNIP=00,
ISDNNP=0,PNPL2P=11,PNPL1P=1,NNO=1-1-8,DEV=S2COD,TGRP=71,
BCHAN=1&&30,BCGR=1,INS=Y,LWPAR=1;
  • Set the tie trunks:
    ADD-TDCSU:OPT=NEW,PEN=1-2-079-00,COTNO=20,COPNO=0, COS=1,
LCOSV=1,LCOSD=1,PROTVAR=ECMA1,DEV=S2CONN,TGRP=74,BCHAN=1&&30,
BCGR=1,ACT=Y,LWPAR=2,SEGMENT=2;

ADD-TDCSU:OPT=NEW,PEN=1-2-091-00,COTNO=20,COPNO=0, COS=1,
LCOSV=1,LCOSD=1,PROTVAR=ECMA1,DEV=S2CONN,TGRP=75,BCHAN=1&&30,
BCGR=1,ACT=Y,LWPAR=2,SEGMENT=2;

ADD-TDCSU:OPT=NEW,PEN=1-2-091-01,COTNO=20,COPNO=0, COS=1,
LCOSV=1,LCOSD=1,PROTVAR=ECMA1,DEV=S2CONN,TGRP=84,BCHAN=1&&30,
BCGR=1,ACT=Y,LWPAR=2,SEGMENT=2;
  • You must set the node connection matrix only for the UNKNOWN numbering plan according to the rules in Section 41.2.1.5, "Source/destination-dependent number modification in the ISDN or PNP numbering plan".
    CHA-KNMAT:NPI=UNKNOWN,LEVEL=0,ONNOL=OWN,
DNNOL=ROW,NUMEXT=#####;

CHA-KNMAT:NPI=UNKNOWN,LEVEL=0,ONNOL=ROW,
DNNOL=OWN,NUMRED=#####;
    The following setting results:
    --------------------------------------------------------------
NODE MATRIX FOR NPI = UNKNOWN, LEVEL = 0, OWN NNO = 1-1-100
--------------------------------------------------------------
  ONNO |DNNO   |CONN|MODCON| NUMEXT                | NUMRED
/ ONNOL|/ DNNOL|    |      |                       |
-------+------+----+------+------------------------+----------
   100 |ROW   | A  |ALL   | 19                     | -
-------+------+----+------+------------------------+----------
   ROW |  100 | A  |ALL   | -                      | 19
  • Set the node format table for CO node 1-1-8, which expects the calling number in international format and the screening indicator NETWPROV (network provided, i.e. the number is checked by the network):
    ADD-KNFOR:DNNO=1-1-8,NPI=ISDN,TONOUT=INTERNAT,
SCRE=NETWPROV;
  • Set the CO route with LCR:
    ADD-RICHT:MODE=LRTENEW,LRTE=20,LSVC=ALL,NAME="CO_S2",
TGRP=71,DNNO=1-1-8,

ADD-LODR:ODR=2,CMD=ECHO,FIELD=3;

ADD-LODR:ODR=2,CMD=END;

ADD-LDAT:LROUTE=20,LSVC=ALL,TGRP=71,ODR=2,LAUTH=1;

ADD-LDPLN:LDP=0-W-X,LROUTE=20,LAUTH=1;
  • Set the tie line routes, outdial rules, route elements, and dial pattern plan in LCR for the ISDN numbering plan:
    /* To Node 2-1-300 */

ADD-RICHT:MODE=LRTENEW,LRTE=700,LSVC=ALL,NAME=ISDN,
TGRP=74,DNNO=2-0-0;

ADD-LODR:ODR=10,CMD=ECHO,FIELD=4;

ADD-LODR:ODR=10,CMD=ECHO,FIELD=5;

ADD-LODR:ODR=10,CMD=NPI,NPI=ISDN;

ADD-LODR:ODR=10,CMD=TON,TON=INTERNAT;

ADD-LODR:ODR=10,CMD=END;

ADD-LDAT:LROUTE=700,LSVC=ALL,LVAL=1,TGRP=74,ODR=10,LAUTH=1;

ADD-LDPLN:LDP=0-W-00-41-X,LROUTE=700,LAUTH=1;
 /* To Node 1-2-200 */

ADD-RICHT:MODE=LRTENEW,LRTE=707,LSVC=ALL,NAME=ISDN,
TGRP=75,DNNO=1-2-0;

ADD-RICHT:MODE=LRTENEW,LRTE=708,LSVC=ALL,NAME=ISDN,
TGRP=75,DNNO=1-2-0;

ADD-LODR:ODR=11,CMD=ECHO,FIELD=4;

ADD-LODR:ODR=11,CMD=ECHO,FIELD=5;

ADD-LODR:ODR=11,CMD=NPI,NPI=ISDN;

ADD-LODR:ODR=11,CMD=TON,TON=NATIONAL;

ADD-LODR:ODR=11,CMD=END;

ADD-LDAT:LROUTE=707,LSVC=ALL,LVAL=1,TGRP=75,ODR=10,LAUTH=1;

ADD-LDAT:LROUTE=708,LSVC=ALL,LVAL=1,TGRP=75,ODR=11,LAUTH=1;

ADD-LDPLN:LDP=0-W-00-49211-X,LROUTE=707,LAUTH=1;

ADD-LDPLN:LDP=0-W-0-211-X,LROUTE=708,LAUTH=1;
 /* To Node 1-1-400 */

ADD-RICHT:MODE=LRTENEW,LRTE=710,LSVC=ALL,NAME=ISDN,
TGRP=84,DNNO=1-1-400;

ADD-RICHT:MODE=LRTENEW,LRTE=711,LSVC=ALL,NAME=ISDN,
TGRP=84,DNNO=1-1-400;

ADD-RICHT:MODE=LRTENEW,LRTE=712,LSVC=ALL,NAME=ISDN,
TGRP=84,DNNO=1-1-400;

ADD-LODR:ODR=16,CMD=OUTPULSE,DGTS=89;

ADD-LODR:ODR=16,CMD=ECHO,FIELD=3;

ADD-LODR:ODR=16,CMD=ECHO,FIELD=4;

ADD-LODR:ODR=16,CMD=NPI,NPI=ISDN;

ADD-LODR:ODR=16,CMD=TON,TON=SUBSCR;

ADD-LODR:ODR=16,CMD=END;

ADD-LDAT:LROUTE=710,LSVC=ALL,LVAL=1,TGRP=84,ODR=10,LAUTH=1;

ADD-LDAT:LROUTE=711,LSVC=ALL,LVAL=1,TGRP=84,ODR=11,LAUTH=1;

ADD-LDAT:LROUTE=712,LSVC=ALL,LVAL=1,TGRP=84,ODR=16,LAUTH=1;

ADD-LDPLN:LDP=0-W-00-4989636-X,LROUTE=710,LAUTH=1;

ADD-LDPLN:LDP=0-W-0-89636-X,LROUTE=711,LAUTH=1;

ADD-LDPLN:LDP=0-W-636-X,LROUTE=712,LAUTH=1;

/* On the own node, LCR recognizes own node, TGRP ignored */
  • The configuration for a route on the own node has changed due to the virtual node concept. As before, one route must be configured, but the recognition of a (logical) loop no longer takes place using the node number, but rather using a route attribute RERTEINT = Reroute Internal.
    ADD-RICHT:MODE=LRTENEW,LRTE=706,LSVC=ALL,NAME=OWN,
TGRP=84,DNNO=1-1-100;

ADD-LODR:ODR=13,CMD=ECHO,FIELD=4;

ADD-LODR:ODR=13,CMD=END;

ADD-LDAT:LROUTE=706,LSVC=ALL,LVAL=1,TGRP=84,ODR=13,
LAUTH=1;

LATTR=RERTEINT

ADD-LDPLN:LDP=0-W-004989722-X,LROUTE=706,LAUTH=1; /*
International */

ADD-LDPLN:LDP=0-W-089722-X,LROUTE=706,LAUTH=1;
/* National */

ADD-LDPLN:LDP=0-W-722-X,LROUTE=706,LAUTH=1;
/* Subscriber */
  • Set the tie line routes, outdial rules, route elements, and dial pattern plan in LCR for the PRIVATE numbering plan:
    /* To Node 2-1-300 */

ADD-RICHT:MODE=LRTENEW,LRTE=600,LSVC=ALL,NAME=ISDN,TGRP=74,

DNNO=2-0-0;

ADD-LODR:ODR=20,CMD=ECHO,FIELD=3;

ADD-LODR:ODR=20,CMD=ECHO,FIELD=4;

ADD-LODR:ODR=20,CMD=NPI,NPI=PRIVATE;

ADD-LODR:ODR=20,CMD=TON,TON=LEVEL2;

ADD-LODR:ODR=20,CMD=END;

ADD-LDAT:LROUTE=600,LSVC=ALL,LVAL=1,TGRP=74,ODR=20,
LAUTH=1;

ADD-LDPLN:LDP=15-11-31-X,LROUTE=600,LAUTH=1;
/* To Node 1-2-200 */

ADD-RICHT:MODE=LRTENEW,LRTE=607,LSVC=ALL,NAME=ISDN,
TGRP=75,

DNNO=1-2-0;

ADD-RICHT:MODE=LRTENEW,LRTE=608,LSVC=ALL,NAME=ISDN,
TGRP=75,

DNNO=1-2-0;

ADD-LODR:ODR=21,CMD=ECHO,FIELD=3;

ADD-LODR:ODR=21,CMD=ECHO,FIELD=4;

ADD-LODR:ODR=21,CMD=NPI,NPI=PRIVATE;

ADD-LODR:ODR=21,CMD=TON,TON=LEVEL1;

ADD-LODR:ODR=21,CMD=END;

ADD-LDAT:LROUTE=607,LSVC=ALL,LVAL=1,TGRP=75,ODR=20,
LAUTH=1;

ADD-LDAT:LROUTE=608,LSVC=ALL,LVAL=1,TGRP=75,ODR=21,
LAUTH=1;

ADD-LDPLN:LDP=15-11-391573-X,LROUTE=607,LAUTH=1;

ADD-LDPLN:LDP=15-1-1573-X,LROUTE=608,LAUTH=1;
 /* To Node 1-1-400 */

ADD-
RICHT:MODE=LRTENEW,LRTE=610,LSVC=ALL,NAME=ISDN,TGRP=84,
DNNO=1-1-400;

ADD-RICHT:MODE=LRTENEW,LRTE=611,LSVC=ALL,NAME=ISDN,
TGRP=84,DNNO=1-1-400;

ADD-RICHT:MODE=LRTENEW,LRTE=612,LSVC=ALL,NAME=ISDN,
TGRP=84,DNNO=1-1-400;

ADD-LODR:ODR=26,CMD=ECHO,FIELD=2;

ADD-LODR:ODR=26,CMD=ECHO,FIELD=3;

ADD-LODR:ODR=26,CMD=NPI,NPI=PRIVATE;

ADD-LODR:ODR=26,CMD=TON,TON=LOCAL;

ADD-LODR:ODR=26,CMD=END;

ADD-LDAT:LROUTE=610,LSVC=ALL,LVAL=1,TGRP=84,ODR=20,
LAUTH=1;

ADD-LDAT:LROUTE=611,LSVC=ALL,LVAL=1,TGRP=84,ODR=21,
LAUTH=1;

ADD-LDAT:LROUTE=612,LSVC=ALL,LVAL=1,TGRP=84,ODR=26,
LAUTH=1;

ADD-LDPLN:LDP=15-11-397195116-X,LROUTE=610,LAUTH=1;

ADD-LDPLN:LDP=15-1-7195116-X,LROUTE=611,LAUTH=1;

ADD-LDPLN:LDP=15-5116-X,LROUTE=612,LAUTH=1;
 /* On the own node, LCR recognizes own node, TGRP ignored */

ADD-RICHT:MODE=LRTENEW,LRTE=606,LSVC=ALL,NAME=OWN,TGRP=84,

DNNO=1-1-100;

ADD-LODR:ODR=23,CMD=ECHO,FIELD=3;

ADD-LODR:ODR=23,CMD=END;

ADD-LDAT:LROUTE=606,LSVC=ALL,LVAL=1,TGRP=84,ODR=23,
LAUTH=1;

ADD-LDPLN:LDP=15-11397196051-X,LROUTE=606,LAUTH=1;

ADD-LDPLN:LDP=15-17196051-X,LROUTE=606,LAUTH=1;

ADD-LDPLN:LDP=15-6051-X,LROUTE=606,LAUTH=1;
  • Set the tie line routes, outdial rules, route elements, and dial pattern plan in LCR for the UNKNOWN numbering plan:
    /* To Node 2-1-300 */

ADD-RICHT:MODE=LRTENEW,LRTE=101,LSVC=ALL,NAME=UNKNOWN,
TGRP=74,DNNO=2-0-0;

ADD-LODR:ODR=6,CMD=ECHO,FIELD=1;

ADD-LODR:ODR=6,CMD=ECHO,FIELD=2;

ADD-LODR:ODR=6,CMD=END;

ADD-LDAT:LROUTE=101,LSVC=ALL,LVAL=1,TGRP=74,ODR=6;

ADD-LDPLN:LDP=39-X,LROUTE=101,LAUTH=1;
 /* To Node 1-2-200 */

ADD-RICHT:MODE=LRTENEW,LRTE=102,LSVC=ALL,NAME=UNKNOWN,
TGRP=75,DNNO=1-2-0;

ADD-LDAT:LROUTE=102,LSVC=ALL,LVAL=1,TGRP=75,ODR=6;

ADD-LDPLN:LDP=37-X,LROUTE=102,LAUTH=1;
 /* To Node 1-1-400 */

ADD-RICHT:MODE=LRTENEW,LRTE=103,LSVC=ALL,NAME=UNKNOWN,
TGRP=84,DNNO=1--1-400;

ADD-LDAT:LROUTE=103,LSVC=ALL,LVAL=1,TGRP=84,ODR=6;

ADD-LDPLN:LDP=27-X,LROUTE=103,LAUTH=1;

Configuration in other nodes

The configuration of the other nodes is performed in the same manner as that for Node 1-1-100. If (in exceptional cases) you do not want to configure the format-dependent modification for the ISDN and PRIVATE numbering plans, set the node connection matrix following Section .
